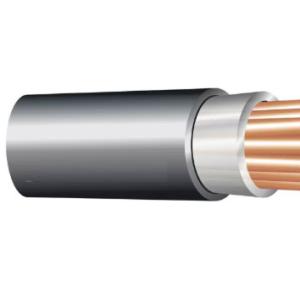

1*120 Sq. Mm 0.6/1 KV XLPE Flexible Cable , Unarmoured Multi Core XLPE Cable
Quick details
– Nominal cross section:1X120 mm2
– Overall diameter Ø approx:18.7mm
– Net weight approx: 1250 kg/km
– Conductor DC resistant at 20°C:0.15 Ω/km
Electrical characteristics
–Rated voltage Uo/U (Um): 600 / 1000 V
–Maximum current rating air 30°C:435 A
–Maximum current rating buried 20°C: 527 A
–Maximum DC resistance, conductor 20°C: 0.15Ω / km
–Test voltage: 4000 V
Dimensional characteristics
– Nominal cross-section: 120 mm2
– No of Conductors: single Core
– Insulation thickness: 1.2mm
– sheath thickness nominal value:1.5 mm
– Max overall diameter Ø: 18.7 mm
– Approximate weight:1250kg/km
Similary Products
| Product name |
Application |
No. of cores |
Conductor |
| mm2 |
| Copper Cable 0.6/1 kV PVC insulated and sheathed (Unarmoued) |
For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for building and industrial plants where not subject to mechanical damage.
Suitable for glanding.
|
1 |
1.5~500 |
| 2 |
1.5~185 |
| 3 |
1.5~300 |
| 4 |
4~300 |
| 3C+1E |
4~300 |
| 3+2C |
4~300 |
| 5 |
4~300 |
| 4C+1E |
4~300 |
| Copper Cable 0.6/1 kVPVC insulated and sheathed steel tape armoured cables |
Allowed use outdoors underground without extra protection in equipment with up to 1kV operating voltage. Approved into the first distribution cabinets in buildings. |
2 |
1.5~185 |
| 3 |
1.5~300 |
| 4 |
4~300 |
| 3C+1E |
4~300 |
| 3+2C |
4~300 |
| 5 |
4~300 |
| 4C+1E |
4~300 |
